Hai selezionato: Entry/Mid Level Storage » SAN Storage» EonStor DS Entry level
- Flexibility I/O Host Board
- Flexibility Expansion Enclosure
- Flexibility Opened Drive Policy
- High Availability Solution
- Up to Random Read/Write IOPS 334K/41K
- Up to MBPS throughput (R/W) 5,600/2,400
- Target Application: Surveillance, Backup

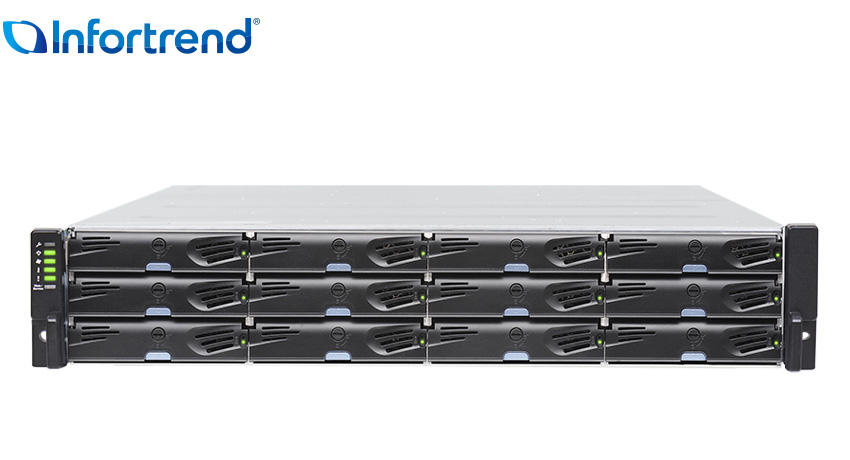

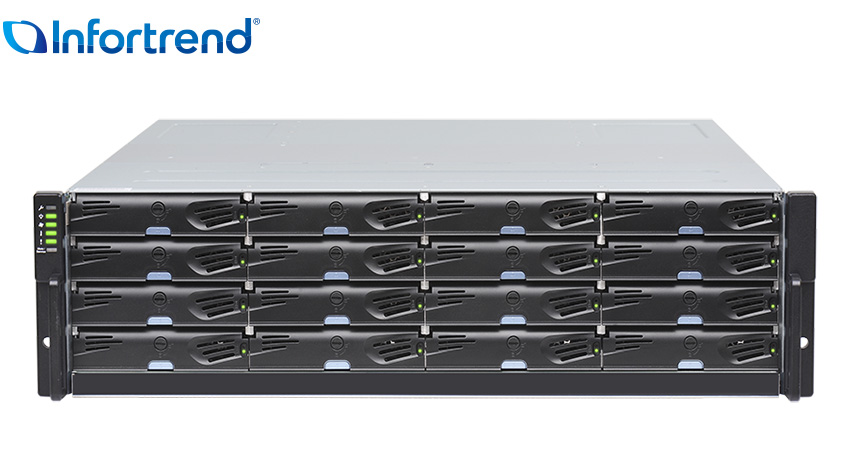

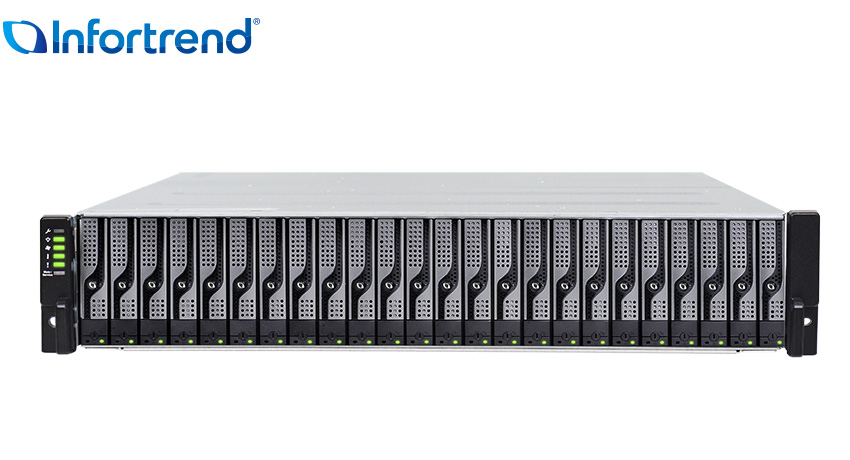

Form Factor: 2U 12-bay & 24-bay, 3U 16-bay, 4U 24-bay
Controller: single or dual-redundant
Cache Backup: Super capacitor + Flash module
RAM: up to 32GB

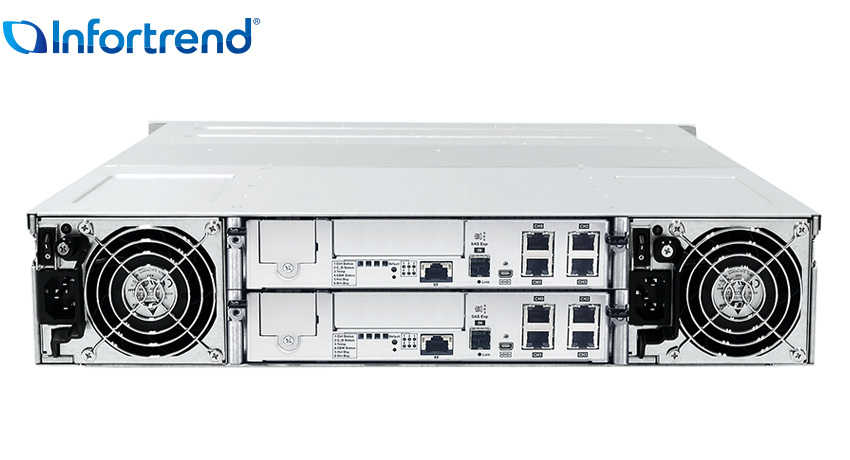

Onboard host ports:
1GbE RJ-45 x8 & 12Gb/s SAS x2 ports
More host options:
16Gb/s FC x 4, 32Gb/s FC x 2 or 4
1GbE (RJ-45) x 4, 10GbE (RJ-45) x 2
10GbE (SFP+) x 2, 25GbE (SFP28) x 2
40GbE (QSFP+) x 2, 12Gb/s SAS x 2
Supported Drives:
2.5" SAS or SATA SSD/HDD, 3.5" SAS or SATA HDD
Default software features include:
SED (self-encrypting drives)
Thin-provisioning
Snapshot
Local replication (block-level)
Optional software features require additional license:
SSD cache
Automated storage tiering 2 or 4 levels
Advanced snapshot
Advanced local replication (block-level)
Advanced remote replication (block-level)
Block-level protocol: FC, iSCSI, SAS
Management: Web-based SANWatch software,
Embedded RAIDWatch, Terminal via RS-232C, Telnet and SSH
Power supplies: Redundant and hot-swappable
